Quick Answer
A U-shaped aluminum baffle ceiling is usually selected for commercial projects that require flexible sizes, adjustable spacing, simple installation and cost control. An aluminum profile baffle ceiling is produced from extruded aluminum profiles and is better suited to projects that require stronger sections, straight lines, larger sizes or custom-shaped ceiling designs.
Both systems can be supplied in custom sizes, colors and finishes. The right choice depends on ceiling height, baffle size, spacing, design shape, installation system and project budget.
This guide explains when a U-shaped aluminum baffle ceiling or an aluminum profile baffle is the better choice for a project.
What Is a U-Shaped Aluminum Baffle Ceiling?

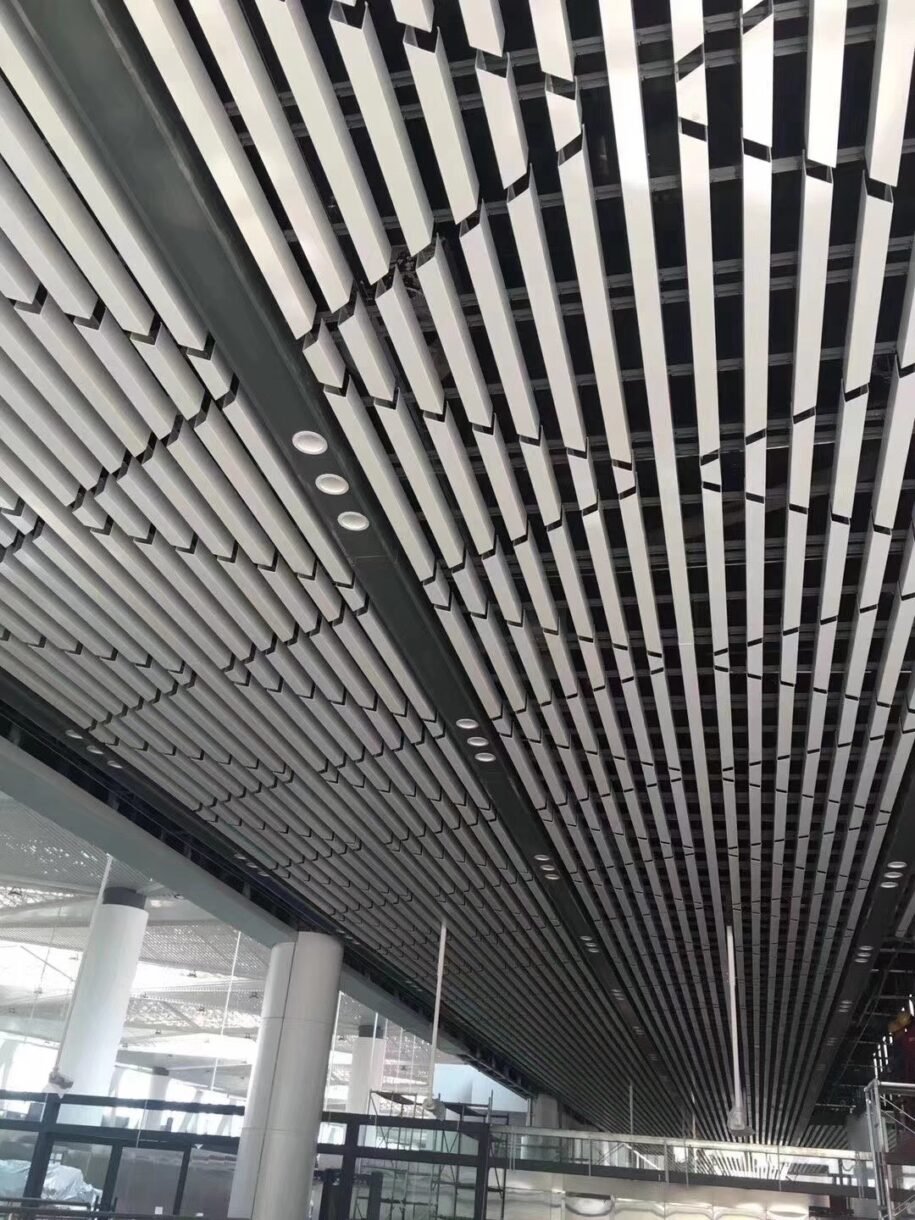

An aluminum baffle ceiling is an open linear ceiling system made from rows of aluminum baffles fixed to carriers or suspension systems. The open layout allows lighting, sprinklers, air-conditioning outlets and other services to remain above the ceiling.
This type of aluminum ceiling is used in airports, railway stations, shopping malls, offices, schools, hotels, exhibition halls and commercial lobbies.
Common product options include:
- U-shaped aluminum baffles
- Aluminum profile baffles
- Recessed aluminum baffles
- Curved aluminum baffles
- Wood-grain aluminum baffles
- Custom aluminum ceiling systems
The baffle width, height, length and spacing can be adjusted according to the ceiling design and project drawings.
What Is a U-Shaped Aluminum Baffle Ceiling?
A Techo con deflectores de aluminio en forma de U is formed from aluminum sheet into a U-shaped linear section. It provides an open ceiling appearance with clear parallel lines.
XIAO HENG can produce U-shaped aluminum baffles in sizes ranging from approximately 20 × 50 mm to 200 × 200 mm. The final thickness, length and suspension system should be selected according to the baffle dimensions and project requirements.
Common long-tail searches for this product include:
- U-shaped aluminum baffle ceiling for commercial buildings
- Custom U-shaped aluminum baffle ceiling sizes
- Wood-grain U-shaped aluminum ceiling baffles
- Aluminum baffle ceiling with adjustable spacing
- U-shaped linear ceiling for shopping malls
- Black aluminum baffle ceiling for offices
U-shaped baffles are suitable for projects that need regular linear patterns, multiple color options and efficient installation.
What Is an Aluminum Profile Baffle Ceiling?
An aluminum profile baffle ceiling is made from extruded aluminum sections. The extrusion process creates a defined profile with a stable cross-section.
Compared with formed aluminum sheet baffles, aluminum profile baffles can provide greater section strength and dimensional stability. They are often selected for larger baffles, long linear ceiling designs, exterior covered areas and custom architectural shapes.
Common long-tail searches include:
- Extruded aluminum profile baffle ceiling
- Aluminum profile ceiling baffles for airports
- Custom aluminum extrusion baffle ceiling
- Large-size aluminum profile baffle ceiling
- Curved aluminum profile ceiling system
- Wood-grain aluminum profile baffles
The profile design, wall thickness, alloy, length and connection method should be confirmed from the project drawings before production.
Buyers who need more information about profile straightness and dimensional tolerances can review the aluminum extrusion tolerance guidance.
U-Shaped Aluminum Baffle and Aluminum Profile Baffle Comparison
| Item | U-Shaped Aluminum Baffle | Aluminum Profile Baffle |
|---|---|---|
| Production method | Formed from aluminum sheet | Extruded aluminum profile |
| Typical appearance | Open U-shaped section | Defined profile section |
| Size flexibility | Wide range of widths and heights | Based on extrusion profile or custom die |
| Section strength | Suitable for standard commercial ceilings | Suitable for stronger and larger sections |
| Weight | Lightweight | Depends on profile size and wall thickness |
| Custom shapes | Straight, angled and some curved options | Suitable for straight, curved and special profiles |
| Project quantity | Suitable for regular and custom orders | Custom profiles may require minimum quantities |
| Common use | Offices, malls, schools and hotels | Airports, stations, lobbies and architectural projects |
Neither product is automatically better for every project. Selection should be based on dimensions, ceiling height, spacing, loading, installation conditions and visual requirements.
How to Select Aluminum Baffle Ceiling Sizes
The visible effect of an aluminum baffle ceiling depends on the relationship between baffle width, baffle height and spacing.
A taller baffle creates deeper ceiling lines and provides more visual screening for services above the ceiling. A wider baffle creates a heavier linear appearance. Smaller baffles with closer spacing produce a denser ceiling pattern.
Before confirming the size, buyers should provide:
- Altura del techo
- Total ceiling area
- Required baffle width and height
- Required baffle length
- Center-to-center spacing
- Ceiling layout drawing
- Lighting and sprinkler positions
- Indoor or covered outdoor application
- Required color and finish
For large baffles or long profiles, the manufacturer should also check section strength, suspension spacing and transport limits.
For each U-shaped aluminum baffle ceiling, the baffle size and spacing should be reviewed together.
How to Choose Aluminum Baffle Ceiling Spacing
There is no single spacing suitable for every aluminum ceiling project.
Closer spacing provides more coverage and reduces the visibility of pipes and equipment above the ceiling. Wider spacing creates a more open appearance and may reduce material use.
Spacing should be selected according to:
- Altura del techo
- Viewing angle
- Required open area
- Lighting layout
- Requisitos de ventilación
- Equipos de protección contra incendios
- Acoustic treatment
- Presupuesto del proyecto
For high ceilings in airports, shopping malls and exhibition halls, larger baffles and wider spacing may be suitable. Offices, corridors and smaller commercial spaces may use smaller sections with closer spacing.
A ceiling layout drawing should be approved before production.
Colores y acabados superficiales
U-shaped aluminum baffles and aluminum profile baffles can be supplied in a range of finishes, including:
- White powder coating
- Black powder coating
- Custom RAL colors
- Wood-grain finish
- Colores metalizados
- Brushed appearance
- PVDF coating for specified applications
Color samples should be confirmed before mass production. Wood-grain patterns may vary between batches, so the full order should be produced under the same approved color standard where possible.
Installation and Project Coordination
An aluminum baffle ceiling usually includes aluminum baffles, carriers, suspension rods and connection accessories. The exact installation method depends on the baffle section and ceiling design.
Before ordering, confirm:
- Baffle direction and layout
- Espaciado entre portadoras
- Distancia entre los puntos de suspensión
- Required access areas
- Lighting and equipment openings
- Wall-edge treatment
- Installation sequence
- Packing and shipping length
Long aluminum baffles require suitable export packaging to reduce bending and surface damage during transport. The package size should also match container loading and site handling conditions.
Which Aluminum Baffle Is Better for Importers and Wholesalers?
Importers and wholesalers should select a product range that covers both standard orders and project-based customization.
U-shaped aluminum baffles are suitable as a regular product because they offer flexible dimensions, colors and spacing. Aluminum profile baffles can support projects that require stronger sections, larger sizes or special shapes.
A practical wholesale range may include:
- Standard white U-shaped aluminum baffles
- Black linear aluminum ceiling baffles
- Wood-grain aluminum baffles
- Large aluminum profile baffles
- Curved and custom-shaped baffles
- Matching carriers and accessories
This combination allows distributors to serve offices, hotels, schools, shopping malls and large public projects.
XIAO HENG Aluminum Ceiling Manufacturing Support
XIAO HENG supplies architectural aluminum ceiling systems for commercial and public building projects.
Available support includes:
- Custom baffle widths and heights
- Adjustable ceiling spacing
- Custom RAL colors and wood-grain finishes
- U-shaped and aluminum profile baffles
- Curved, wave and custom-shaped designs
- Producción OEM y ODM
- Samples for finish confirmation
- Export packaging
- Production based on project drawings
Buyers should send the ceiling drawing, dimensions, quantity, finish and destination country when requesting a quotation. This allows the manufacturer to check the correct profile, thickness, accessories and packing method.
Frequently Asked Questions
What sizes are available for U-shaped aluminum baffles?
XIAO HENG can produce U-shaped aluminum baffles in a range of sizes from approximately 20 × 50 mm to 200 × 200 mm. Final dimensions and material thickness depend on project requirements.
What is the difference between a U-shaped baffle and an aluminum profile baffle?
A U-shaped baffle is usually formed from aluminum sheet. An aluminum profile baffle is produced through aluminum extrusion. Profile baffles are often selected when the project requires greater section strength, straightness or a defined custom profile.
Can aluminum baffle ceiling spacing be customized?
Yes. The spacing can be adjusted according to ceiling height, visual coverage, lighting, ventilation, fire protection systems and budget.
Can aluminum baffles be produced in wood-grain colors?
Yes. Wood-grain, powder-coated, metallic and custom RAL finishes are available. The required color sample should be approved before production.
Are curved aluminum baffle ceilings available?
Yes. Curved, wave-shaped and other custom ceiling designs can be produced according to drawings. The manufacturing method depends on the required radius, profile and installation system.
What information is required for a quotation?
Provide the baffle size, length, thickness if specified, quantity, spacing, color, surface finish, ceiling drawing, accessories and destination country.
